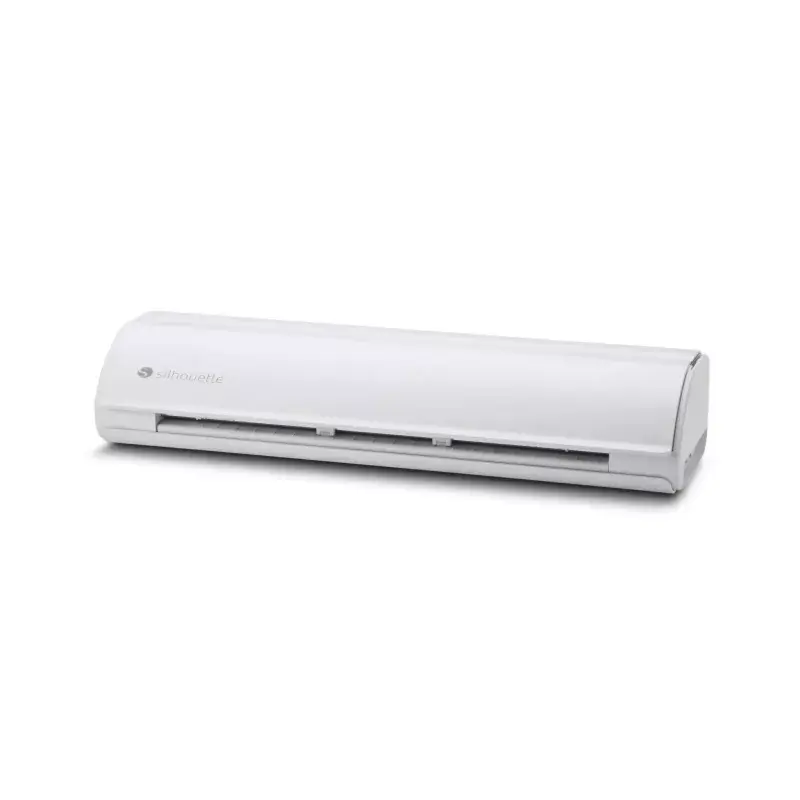

Cameo 5 PLUS

Silhouette presents Silhouette Cameo 5 PLUS, the latest version of the Cameo line.

Silhouette Cameo 5 PLUShas the same features as the Cameo 5, but with a larger cut size. It is quieter, cuts in less time and makes more precise cuts than previous Cameo models.

With the new Silhouette Cameo 5 PLUS, you can cut all types of materials thanks to its new rollers. It has a cutting surface of 38.1 cm.
And thanks to the possibility of cutting without a mat, materials up to 5 meters can be loaded. Cuts up to 3mm thick.

To get the most out of it, the Silhouette Studio software, an online program available, is included with the machine.
You will be able to create your own patterns in a simple and intuitive way, cut all kinds of fonts installed on your computer and transform the images into a compatible format for cutting with the machine.

In addition, the Cameo 5 PLUS presents the Intelligent Path Technology function, a computer innovation that makes it possible to select the cutting order and an automatic control of the blade. This keeps the thin material in tension and prevents it from tearing.

The device offers new accessories sold separately

• Auto Sheet Feeder (ASF) . A connecting plate attachable to the Cameo 5 PLUS to automatically load the sheets
• Electrostatic Mat. Designed for use with superfine materials (sold separately). Since it works without adhesive, delicate materials are unlikely to break.
• Heat Pen Set. To apply foil on your media.
• Pen holder (for tool holder 2). To write and cut at the same time.
• Embossing tool (for tool holder 2). To emboss without issues!

Cameo 5 PLUS Features:

• Power tool capability​
• Auto-cross cutting​ with the AutoBlade
• Quieter operation​
• Adjustable pinch rollers​ with improved grip strength and ability to customize the position
• Improved registration mark reading​ for Print & Cut jobs
• Smooth opening lid architecture​
• Full 38.1 cm cutting width​
• Cut up to 4,87 metres in length
• Matless cutting capabilities ​
• 3 mm height clearance for thicker materials​
• Automatic tool detection​
• Wireless cutting with Bluetooth® connectivity​
• PixScan™ compatible​
• Driven by Silhouette Studio® giving you limitless design options to customize your projects​
• Colour: White

Cameo 5 PLUS Silhouette

Content:

• Silhouette Cameo® 5​ PLUS
• AC Adapter/Power cable set​
• Cutting Mat​ 38,1 x 38,1 cm
• AutoBlade​
• Blade adjustment tool
• Roll Feeder​
• Silhouette Studio® software (download)​
• 100 exclusive designs (available with registration)
• 1-month Silhouette Design Store subscription (available with registration)

Cameo 5 PLUS Technical Features:

• Cutting Area: 38,1 x 38,1 cm with a cutting mat, 37,8 cm x 4,87 m with lined material (when using Roll Feeder)
• Maximum Material Thickness: 3 mm (118.11 mils)
• Maximum Cutting Force:
  - Tool Holder 1: 300 gf (+/-20gf)​
  - Tool Holder 2: 5 kgf (highest in machine class)
• Interface: USB 2.0 (FULL-speed) / Bluetooth®
• Unit Dimensions: 64.2 cm x 12.4 cm x 17.6 cm
• Unit Weight: 5.73 kg
• Requires Silhouette Studio® software version: 4.5.700 or higher​
• Minimum System Requirements: Windows 10 or later, macOS 12 or later
• Colour: White

Useful links

• Cameo 5 PLUS PDF User's Manual available here
• Silhouette Studio Software available here
• Silhouette Cameo 5 PLUS setup available here
